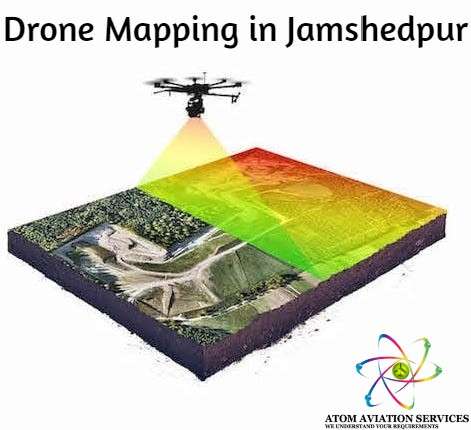

DRONE MAPPING AND SURVEY IN JAMSHEDPUR

Digital Terrain Map

What are the benefits of Drone Survey in Jamshedpur  ?

Less Time & Less Cost- Capturing topographic data with a drone is up to five times faster than with land-based methods (like total station ) and requires less manpower. With PPK geo-tagging, you also save time, as placing numerous GCPs is no longer necessary. You ultimately deliver your survey results faster and at a lower cost.

Provide accurate and exhaustive data

Total stations only measure individual points. One drone flight produces thousands of measurements, which can be represented in different formats (orthomosaic, point cloud, DTM, DSM, contour lines, etc). Each pixel of the produced map or point of the 3D model contains 3D geo-data.

Map otherwise inaccessible areas

An aerial mapping drone can take off and fly almost anywhere. You are no longer limited by unreachable areas, unsafe steep slopes or harsh terrain unsuitable for traditional measuring tools. You do not need to close down highways or train tracks. In fact, you can capture data during operation without any difficulties to other operations.

Where you can use the drone mapping ?

Land surveying / cartography

Survey drones generate high-resolution orthomosaics and detailed 3D models of areas where low-quality, outdated or even no data, are available. They thus enable high-accuracy cadastral maps to be produced quickly and easily, even in complex or difficult to access environments. Surveyors can also extract features from the images, such as signs, curbs, road markers, fire hydrants and drains.After post-processing with a photogrammetry software, these same images can produce very detailed elevation models, contour lines and breaklines, as well as 3D reconstructions of land sites or buildings. For eg Drone Survey in Jamshedpur is far easy as compared to hilly terrain.

Land management and development

Aerial images taken by drones greatly accelerate and simplify topographic surveys for land management and planning. This holds true for site scouting, allotment planning and design, as well as final construction of roads, buildings and utilities.

These images also provide the foundation for detailed models of site topography for pre-construction engineering studies. The generated data can also be transferred to any CAD or BIM software so that engineers can immediately start working from a 3D model.

As data collection by drones is easily repeatable at low cost, images can be taken at regular intervals and overlaid on the original blueprints to assess whether the construction work is moving according to plan specifications.

Precise measurements

High resolution orthophotos enable surveyors to perform highly-accurate distance and surface measurements.

Stockpile volumetric measurements

With 3D mapping software, it is also possible to obtain volumetric measurements from the very same images. This fast and inexpensive method of volume measurement is particularly useful to calculate stocks in mines and quarries for inventory or monitoring purposes.

With a drone, surveyors can capture many more topographic data points, hence more accurate volume measurements. They can also do this in a much safer way than if they had to manually capture the data by going up and down a stockpile. Since drones are capturing the data from above, operations on site won’t be interrupted. The short acquisition time enables capturing a site snapshot at a specific point in time.

Slope monitoring

With automated GIS analysis, it is possible to extract slope measurements from DTMs and DSMs generated by drone imagery. Knowing the steepness of the ground’s surface, the areas can be classified and used for slope monitoring purposes, including landslide mitigation and prevention.

With orthomosaics taken at different times, it is possible to detect changes in earth movement and to measure its velocity. This data can help predict landslides and prevent potential damage to roads, railways and bridges.

Compared to traditional monitoring techniques, where sensors are placed on single points, drones enable more comprehensive data collection. Drones with PPK capability, which do not require laying out of multiple GCPs, are optimal for this application, since these areas are often hard to reach or even dangerous.

Urban planning

The development of increasingly dense and complex urban areas requires intensive planning and therefore time-consuming and expensive data collection. Thanks to drones, urban planners can collect large amounts of up-to-date data in a short period of time and with far less staff. The images produced in this way allow planners to examine the existing social and environmental conditions of the sites and consider the impact of different scenarios.

Thanks to 3D models, buildings can also be easily overlayed onto their environment, giving planners and citizens an experimental perspective of a complex development project. 3D models also allow analysis and visualization of cast shadows and outlooks/views.

What kinds of deliverables can you expect with drone surveying?

3D point cloud drone survey

DSM AND DTM FROM DRONE SURVEY

CONTOUR FROM DRONE SURVEY

 Accuracy of Drone Survey ?

The quality of camera resolution, the height at which the drone flies and the method and technology used to geolocate the aerial images can heavily influence the accuracy of drone survey mapping. At this point, it is possible to reach an absolute accuracy down to 2-5 cm .

Drone Survey Methodology ?

Before leaving the office for Drone Survey, the team does initially prelimarily survey with google earth for checking the obstructions and site accessibility .

After reaching the site, team start with putting the DGPS base and take the RTK values at regular intervals. After all the values are picked across the area of interest, than aerial images are captured with the help of Drones . With the help of photogrammetry softwares like Pix4D or agisoft, dgps and drone data are merged together to form a seamless orthomosaic or 2D map. You can achieve accuracy of upto 2-5 cm.

Cost for Drone Survey in Jamshedpur ?

Getting a Drone survey is extremely cost effective. However the costing for doing the Drone Survey in Jamshedpur depends on various factors like type of terrain, outputs of drone survey, weather etc. However the Drone survey costs around Rs 60,000 to 75,000 per sq km.

We provide services at following locations –

Summary :

Drone Survey in Jamshedpur with the help of DGPS and quadcopter is a technical process but it saves lot of time and it is extremely cost effective. Atom Drones has been doing Drone Survey in Jamshedpur for many years. Drone Survey gives so many outputs in just single flight like Orthomap, DEM, DTM, DSM, Contour etc.
