Lidar Deep Learning for Ancient Maya Archaeology
While it is feasible to catch old Maya locales concealed underneath wilderness covering in distant areas utilizing airborne Lidar, distinguishing them is as yet a tedious cycle. Normally, 3D point mists are changed over completely to 2D geographical alleviation pictures that will more often than not miss more modest archeological hills that are basic to grasping human-climate collaborations with suggestions for the present worldwide difficulties. This task straightforwardly investigated Lidar information utilizing profound figuring out how to decisively accelerate the handling time and increment the exactness of archeological site ID.
In the previous ten years, airborne Lidar has caught huge number of beforehand undocumented old Maya archeological elements, affirming the tremendous size of exemplary (250-800CE) Maya urban areas. Nonetheless, archeologists face two significant difficulties. To begin with, there is a storm of Lidar information that requires huge and exorbitant difficult work to decipher. Second, computerized manual information handling procedures actually miss almost half of little archeological hills because of geology and varieties in vegetation level and thickness.
Previous Research
To address the primary test, a couple of archeologists began to utilize profound learning, a sub-field of AI, which has shown cutting edge execution on mechanized object acknowledgment errands. While effective, this past exploration was restricted to the utilization of profound figuring out how to 2D information, barring accessible 3D information, and didn’t zero in on more modest archeological highlights. This task is remarkable on the grounds that it tends to this hole utilizing profound learning-based processes that can arrange archeological destinations straightforwardly from Lidar 3D point cloud datasets and work on the precision of recognizing little archeological elements underneath profound covering in different natural circumstances.

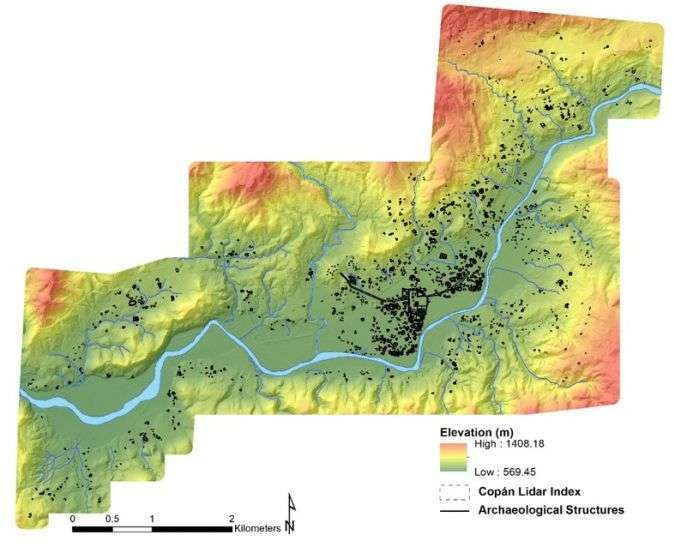

Figure 1: Archeological Site of Copán, Honduras.
Contextual analysis
Lidar information from the UNESCO World Heritage Site of Copan (Figure 1 and 2) Honduras, was utilized as the essential dataset to foster new profound learning models and hence look at the arrangement exactness of profound learning models utilizing 2D and 3D information. From the fifth to 10th hundreds of years CE, Copan – frequently alluded to as the ‘Athens of the Maya World’ – was the social and business focal point of a strong old Maya realm. The city has awed adventurers, archeologists and guests since the 1500s and is the most completely unearthed Maya site. In 427CE, Yax Kuk Mo turned into Copan’s most memorable dynastic ruler, establishing a line that enveloped 16 rulers and traversed very nearly 400 years until surrendering to ecological and sociopolitical pressures that came upon the realms of the Maya Southern Lowlands. Copan’s area in a restricted valley with heights going from 569-1,408m along the Copan River brings about fluctuated geology, various vegetation and changed land-use rehearses, and is consequently illustrative of the difficulties looked across the Maya district in distinguishing archeological destinations from Lidar.
Figure 2: Aerial perspective on Copán’s metro stately Core (Courtesy: Richard Wood, Heather Richards-Rissetto, Christine Wittich, UNL)
Project Data: Archeological and Lidar
In the last part of the 1970s and mid 1980s, the Copan Archeological Project did a straightforward planning review utilizing a plane table and alidade, over 25km2 around Copan’s fundamental urban stately focus. The simple guides were georeferenced and digitized to lay out a Copan Geographic Information System (GIS). In 2013, the MayaArch3D Project caught Lidar information for a similar spatial degree utilizing a Leica ALS50 Phase II framework mounted on a Piper Aztec airplane. The objective point thickness was ≥ 15 heartbeats/m2 and all regions were reviewed with a restricting flight line sidelap cross-over of ≥ half. The typical first-return thickness was 21.57 focuses/m2 and the ground return thickness arrived at the midpoint of 2.91 places/m2. Following obtaining, the Lidar information went through a few (tedious) phases of post-handling that consolidated ‘standard’ exposed earth calculations and self-loader and manual strategies to characterize 3D focuses into four classes: (1) Vegetation (green), (2) Ground (yellow), (3) Archeological Features (red), and (4) Ruin Grounds (purple) (see von Schwerin et al., 2016)
Profound Learning: Object Classification and Semantic Segmentation
For a really long time, PC vision experts have concentrated on the issue of computerizing object grouping and semantic division. Convolutional brain organizations (CNNs) have demonstrated best; in any case, they require a lot of named preparing information, frequently in the scope of millions of pictures that are pre-marked as well as portioned manually. This represents a trouble while working with little datasets, commonplace of remote detecting and, specifically, paleohistory. Past exploration recommends that the use of move learning – an AI strategy that further develops execution utilizing information gained from a past undertaking – for little datasets works on model exactness. As far as 3D shape characterization, point-based strategies have shown probably the most elevated exactness; subsequently, this exploration utilized a point-based move learning design to recognize old Maya archeological destinations.

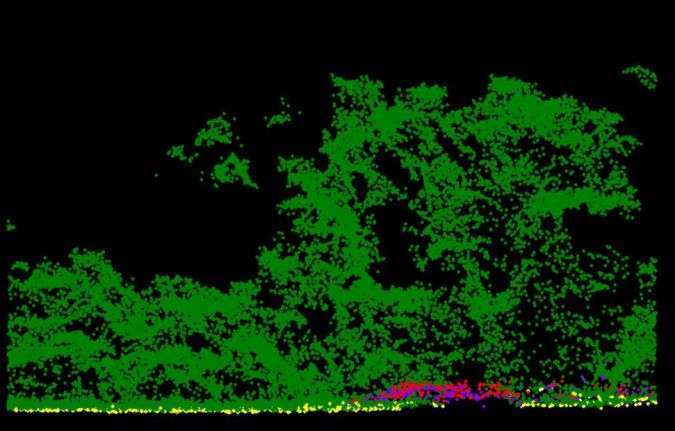

Figure 3: Example of 3D cloud focuses from airborne Lidar of Copán, Honduras.
Technique
The PointConv (Wu, Qi and Fuxin, 2019) profound learning engineering was utilized to distinguish old Maya archeological locales from Copan’s Lidar information. The technique was tried against CNN processes depending on 2D information, utilizing Inception-v3, to decide the best methodology. Likewise, information expansion techniques for working with little 3D datasets were assessed. The consequences of these analyses exhibit that the PointConv design gives more noteworthy arrangement precision in distinguishing Maya archeological locales than the CNN-based approach. This outcome exhibits a way for scientists to utilize 3D point cloud information straightforwardly in profound learning models while further developing precision and lessening information planning time.
Dataset Pre-handling
For the 3D model preparation, crude laser (LAS) designed documents were utilized from shapefiles commented on by the archeologists. Then, at that point, 10,024 focuses for each information record were consistently tested and the ordinary vectors were figured from the point mists. The essential boundaries for the point cloud information incorporate XYZ directions and typical vectors utilizing CloudCompare. For the 2D correlation, hillshade pictures were named and separated into two arrangements of sub-pictures: (1) positive class: archeological designs and (2) negative class: regions without archeological designs. The two subsets included foundation involving 3D focuses addressing different geography and vegetation type and thickness.
Information Augmentation and Training 3D and 2D Deep Learning Models
A lot of information are expected to prepare profound learning models, however the Copan dataset was not sufficiently enormous; subsequently, two information expansion techniques misleadingly produced new information from the current information to make a bigger and more factor dataset: (1) irregular pivot and (2) jittering by means of Gaussian commotion. Similar information increase systems were utilized for the 3D and 2D models. The 3D preparation dataset involved 142 positive examples (containing archeological destinations) and 142 negative examples (just normal highlights). The 2D preparation dataset involved 410 positive examples and 430 negative examples with different slopes, mountains and level regions (vegetation was taken out on the grounds that it clouds locales). Through information increase, the dataset size was significantly increased for both 3D and 2D model preparation. For 3D and 2D model preparation, 80% of the dataset was utilized, and the leftover 20% was utilized for testing.
Results

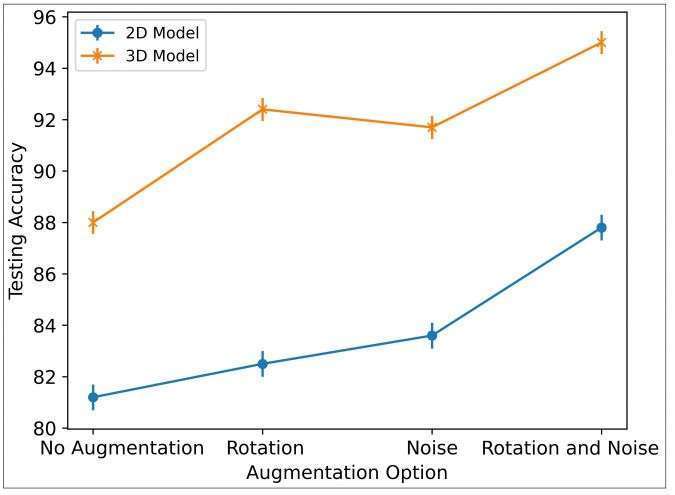

The 3D and 2D profound learning models were assessed in view of the exactness of the test datasets, which were not utilized for preparing. Moreover, the models were assessed in view of expansion strategies. Figure 4 shows the arrangement exactness of the increase strategies. The 3D model accomplished 88% precision on the testing information without expansion, 91.7% utilizing a Gaussian commotion based approach, 92.4% utilizing irregular turns, and 95% exactness with consolidated increase. In correlation, the 2D model was simply ready to accomplish an exactness of 87.8% utilizing this equivalent consolidated expansion methodology. To some extent, the outcome of the 3D profound gaining results from the consideration of Z rises, dissimilar to the 2D hillshade pictures.
End and Future Work
While airborne Lidar is changing prehistoric studies, recognizing archeological locales is still incredibly tedious and costly on the grounds that standard sifting calculations will more often than not miss the mark. In the Maya district, this undertaking is especially difficult in light of the fact that destinations are concealed underneath wilderness shade and show up as hills that are hard to recognize from regular geology. Until this point, a couple of profound learning projects have been applied to paleontology, and these have utilized 2D methodologies. Conversely, this venture represents that crude 3D point cloud information can not exclusively be utilized in profound learning draws near however gives higher exactness in distinguishing old Maya destinations of every kind imaginable. Future work will refine the utilized techniques and consolidate a bigger dataset of old Maya locales from Belize to keep on unraveling the effects of variable geology and vegetation for profound learning approaches as well as for understanding what we can gain from old natural designing.
